Effortless Installation for Every Surface

Our adjustable mounting system is designed for quick, safe, and flexible installation on any vertical surface.
Follow our simple step-by-step guide and deliver secure, professional results — every time.

Key Benefits for Installers

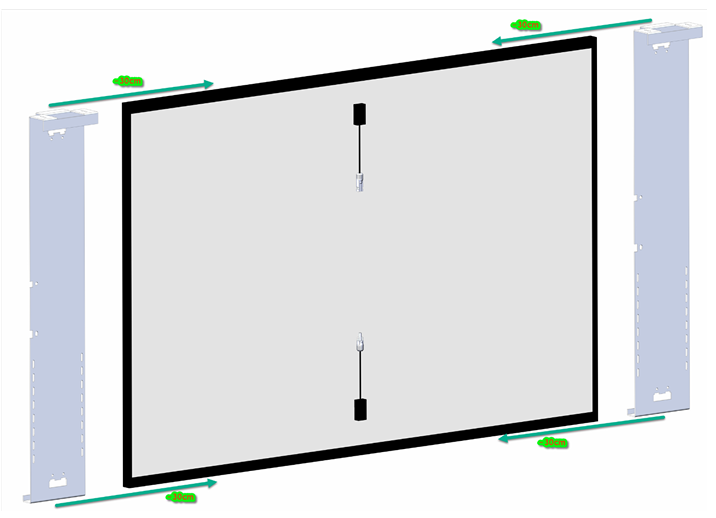

  • 1. Prepare the Mounting Brackets

    Slide the adjustable brackets evenly along the solar panel frame. Make sure brackets are straight; if they pinch, realign before sliding further.

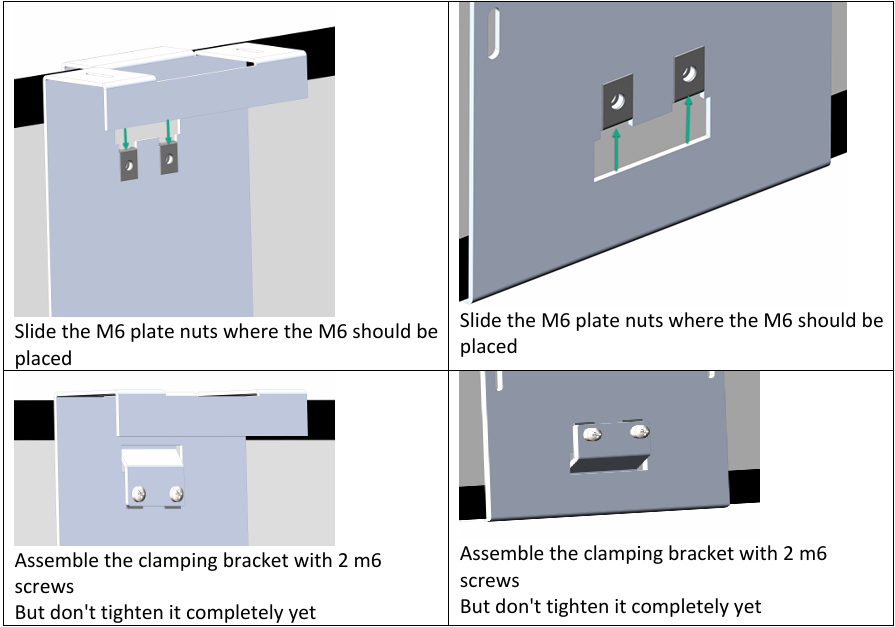

  • 2. Attach Clamping Plates

    Insert M6 plate nuts into the panel frame where the clamps will go. Secure the upper and lower clamping brackets with M6 screws. Do not tighten fully yet — leave slight flexibility for adjustment.

  • 3. Align and Tighten

    Adjust the bracket positions to match the bars or rails of the balcony or fence. Once aligned, fully tighten the clamping screws to lock everything in place.

  • 4. Mount the Inverter

    Attach the microinverter securely using M8 bolts and plate nuts. Connect the solar panel cables to the inverter and listen for the ‘click’ sound that confirms locking. Cover any unused AC jugs with the provided waterproof hood.

  • 5. Safe Panel Placement

    Always work with two people. Loop the safety lashing strap around the panel and balcony or fence before lifting. Carefully tilt and place the panel over the railing, using the strap to protect your fingers.

  • 6. Final Securing

    Fix the stainless steel ty-raps at the top and bottom of each bracket. For extra strength, loop ties twice or secure them to lower rails. Ensure all ties are tight, and trim excess material safely.

  • 7. Electrical Connection

    Connect the AC extension cable from the inverter to the socket or connection point. Make sure unused plugs are sealed against water. Confirm all connections are firm and weather-protected.

  • 8. Safety Checks

    Verify all bolts, straps, and ties are properly secured. Recommend customers recheck installation every six months or after storms.

Important Safety Tips

  • Never lean over balcony railings during installation.
  • Pause work if there are people, pets, or strong winds present.
  • Always secure the panel with a lashing strap during lifting.
  • Never lean over balcony railings during installation.
